Body Group  E-300 (US: Evolt)

The second body of the E-System was the E-300, aimed at the consumer market with a much lower introduction price as the E-1. Some professional features have been stripped: the body is part aluminium, part plastic and not splash proof; the viewfinder covers only 94% of the viewfield, the focusing screen is fixed and there is no pc flash connector. There's also no information panel on the top. The pixel size however is increased from 5MP to 8MP. Read about its (image) quality at Digital Photo Review.

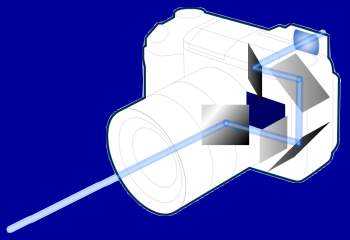

The E-300 features an interesting design of the optical path, which has been borrowed from the old PEN F System from the 1960's (and which is also used in Olympus binoculars). Instead of the familiar pentaprism a porroprism is used. With the aid of four mirrors the light path is shifted sideways (see image below); the absence of the pentaprism makes the body much more compact (and not looking like a SLR at all).
The E-300 accepts most of the units from the E-System. There are some exceptions, see the compatibility list. There have also been some units developed especially for the E-300. First to be mentioned are the two low priced, lightweight kit lenses: the 14-45mm/F3.5-5.6 and the 40-150mm/F3.5-4.5. More remarkable is the underwater house PT-E01 which only fits the E-300.



Specifications

Type Interchangeable Digital SLR Camera
Compatible Lens Zuiko Digital, Four Thirds System Lens
Lens Mount Four Thirds Mount
Body


Chassis: Aluminium die-casting
Top cover: aluminium
Other: plastic
Media Compact Flash Card (Type I, II), Micro Drive
Effective pixel number 8 million pixels
Image Size 17.3mm x 13.0mm
Image sensor
   Type 4/3 type Full Frame Transfer CCD solid-state image sensor
   Total Pixel Number 8.89 million pixels
   Aspect ratio 4:3
   Filter Array Primary colour filter (RGB)
Filter
   LPF Fixed type
   Dust Protect Filter Supersonic Wave Filter
Viewfinder
   Type Eye-level TTL Optical Porro Finder
   Viewfield Coverage Approx. 94%
   Magnification Approx. 1.0x with a 50mm lens set to infinity at -1 dioptre
   Eye Point 20mm at -1 dioptres
   Dioptre Adjustment Built-in type -3.0 to +1.0 dioptres
   Focusing Screen Fixed type (Neo Lumicron Mat Screen)
   Mirror Side swing quick return mirror
Viewfinder Information
AF frame, AF point (super impose),  AF confirmation,
metering mode, exposure mode, exposure compensation,
shutter speed, aperture value, AE lock,
white balance, flash, battery level indicator, record mode,
number of storable pictures
   Depth of Field Preview Yes (customised OK button)
   Eye Cup Interchangeable type EP-3 supplied
   Eye Piece Shutter Eye piece cap supplied
Auto Focus
   Type TTL Phase Difference Detection System
   Focus Modes Single AF, Continuous AF, Manual Focus
   Detection Range EV 0 to 19 (ISO 100)
   Focus Area 3 points
   Focus Area Selection Automatic Selection, Manual Selection
   AF Assist Lamp Built-in flash, optional Olympus dedicated flashes
   AF Lock Locked by first position of shutter release button
   Focus tracking

Available in continuous AF mode

Manual focus

Available by rotating focus ring, manual focus operation in AF mode (customised)

Exposure Control
   Light Metering System

TTL open aperture light metering with 3-zone multi-pattern sensing system

   Light Metering Modes

Digital ESP, centre-weighted average, spot (approx. 2%)

   Detection Range Digital ESP, centre-weighted average: EV 2 to 20
Spot: EV 3 to 17 (50mm f2, ISO 100)
   Exposure Modes Program with program shift, shutter priority, aperture priority, manual
   Exposure Compensation up to +/- 5 EV in each 1, 1/2, or 1/3 EV steps
   AE Lock

Locked by first position of shutter release or AEL button (customised)

   Exposure Bracketing 3 frames in +/- 1, 1/2 or 1/3 EV steps
Sensitivity
   Auto ISO 100 to 400
   Manual ISO 100/200/400; expandable to 800/1600
Shutter
   Type Electronically controlled focal plane shutter
   Shutter Speed
P, Ps: 1 - 1/4000; A, S: 30 - 1/4000; M: 30 - 1/4000
Bulb: up to 8 minutes
Scene Program, Scene Select 4 - 1/4000 (depends on mode)
   X-Sync Speed X = 1/180 sec; Super FP up to 1/4000 sec.
   Shutter Release

Soft-touch electromagnetic release

   Self Timer 12 or 2 sec.
   Remote Control Wireless by RM-1 / Wired by RM-CB1
Drive System
   Drive Modes Single and sequential shooting
   Sequential Shooting
   Speed
Approx. 2.5 fps
   Max. Frame Number
   on  Sequential
  Shooting
RAW/TIFF: 4 frames;
JPEG: depends on compression ratio and pixel number
White Balance System
   Auto WB System
Advanced detection system with CCD imager
   Preset WB
8 type (3000k -7500k)
   Custom Mode 1 custom setting by one-touch WB
   WB Compensation Up to +/-7 steps for both auto and preset settings.
2000-6000K; 100K step,
6000-8000K; 200K step,
8000-10000K; 500K step.
  WB Bracketing 3 frames with 2,4,6 steps
Colour Space sRGB / AdobeRGB
Colour Saturation 5 levels
Sharpness 5 levels
Contrast 5 levels
Built-in flash
   Type TTL auto FP/TTL auto for Olympus dedicated flash, auto or manual
   Synchronisation modes Auto, red-eye reduction, slow synchro, 2nd curtain slow synchro, fill-in, manual
   Guide number Approx. 13
External Flash Control
   Type

TTL auto FP/TTL auto for Olympus dedicated flash, auto or manual

   Synchronisation modes

Auto, red-eye reduction, slow synchro, 2nd curtain slow synchro, fill-in for exclusive flash

   Intensity Control Up to +/- 2 EV in each 1, 1/2 or 1/3 EV step for exclusive flash
   Multi-flash control Yes (control built-in and external flash independently with FL-36)
   Synchro Socket N/A
Control Panel Information
Metering mode, exposure mode, aperture value, shutter speed, exposure level indicator, exposure compensation value, exposure compensation indicator, AE bracket, image quality adjustment, ISO, colour space, monotone, hi/lo key, colour saturation compensation value, sharpness compensation value, white balance, white balance bracket, noise reduction mode, AE lock, flash mode, flash compensation value, focus mode, AF frame, drive mode, record mode, number of storable still pictures, number of storable pictures, battery check
Playback Monitor
   Type Hyper crystal LCD panel
   Size 1.8 Inch/4.6 cm
   Pixel Number 134.000 pixels
   Viewfield Coverage Approx. 100%
   Brightness Control +/- 7 steps
   Protection Cover N/A
Playback Functions
   Display Mode
Single, zoom (2 to 10x), index (4,9,16 frames), slide show, rotation
   Information Histogram, high light point warning, AF frame, exposure mode, metering mode, shutter speed, f-stop, compensation level,
ISO, colour space, white balance mode, focal length,
focus area, file type, contrast level, sharpness level
  Exposure Level View
N/A
   Video Signal Output N/A
Erase / Protect Function
   Erase modes Single, all
   Image Protect Mode Single
Recording System
   Recording format DCF, DPOF compatible, EXIF2.2 compatible, PRINT Image Matching II compatible
   Type of File Format JPEG, TIFF (RGB 8 bit), RAW (12bit)
   RAW+JPEG Recording Yes
   File Size RAW: 13.5MB (3264 x 2448)
TIFF: 23.3MB (3264 x 2448)
JPEG SHQ:  6.1MB (3264 x 2448) 1/2.7
JPEG HQ: 4.3MB (3264 x 2448) 1/4
                   1.9MB (3264 x 2448) 1/8
JPEG SQ: 5.9MB (3200 x 2400) 1/2.7
                  4.1MB (3200 x 2400) 1/4
                  1.9MB (3200 x 2400) 1/8
                  4.0MB (2560 x 1920) 1/2.7
                  2.4MB (2560 x 1920) 1/4
                  1.2MB (2560 x 1920) 1/8
                  1.4MB (1600 x 1200) 1/2.7
                  0.9MB (1600 x 1200) 1/4
                  0.5MB (1600 x 1200) 1/8
                  0.9MB (1280 x 960) 1/2.7
                  0.6MB (1280 x 960) 1/4
                  0.3MB (1280 x 960) 1/8
                  0.6MB (1024 x 768) 1/2.7
                  0.4MB (1024 x 768) 1/4
                  0.2MB (1024 x 768) 1/8
Image Editing
   RAW development Yes
  JPEG editing Yes (monotone, resize)
PictBridge Yes
Menu
   Category Shooting menu 1, shooting menu 2, playback menu, custom menu, setup menu
   Languages English (default), German, French, Spanish. Optionally, one language can be downloaded via internet.
Custom Reset N/A
Interface
    PC Interface USB
   Video signal output NTSC or PAL selectable
Power supply
   Battery Rechargeable Li-ion battery Pack BLM-1
Optional: Power Battery Holder HLD-3
   AC Adapter Optional AC adapter : AC-1 (AC 100V-240V, 50-60Hz; DC 9V)
Size / Weight
   Dimensions 146.5 x 85 x 64mm  [W x H x D]
   Weight 580g (without batteries, CF card or cap)
Environment
   Splash Proof No
   Temperature Operating range: 0°C to 40°C. Storage range: -20°C to 60°C.
   Humidity Operating range: 30 to 90%. Storage range: 10% to 90%.
   Box contents
E-300 body,
USB cable, video cable,
Li-ion battery pack (BLM-1),
Li-ion battery charger (BCM-2),
shoulder strap,
CD-ROM, instruction manuals, warranty card
