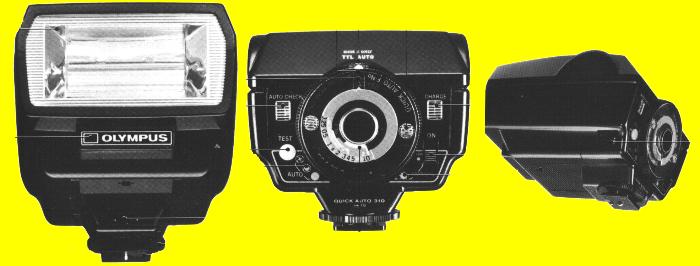

Flashphoto Group Quick Auto 300 / Quick Auto 310
| Summary | Main Characteristics | Notes - Related Units |
| Energy-saving, series-circuit type,
system electronic flash unit. TTL Auto (Quick Auto 310 with OM-2 + Accessory Shoe 2), Normal Auto (3 apertures) and Manual (2-stage output) can be instantly selected. The Quick Auto 300 does not support TTL Auto; this flash was discontinued when the OM-2 and Quick Auto 310 were introduced. |
Guide number 34 (ASA 100, m) at peak. The coverage angle is almost equal to the picture angle of a 24mm super wide angle lens. TTL Auto: the Silicon Blue Cells of the OM-2 (TTL Direct Light Measuring System) work also as the flash-light sensor. The features of the system are: 1) ASA film speed and aperture need not be set on the Quick Auto 310 2) lens aperture is used continuously 3) extensive working range 17cm~23m (F1.2 lens, ASA 100) 4) auto macrophotography and photomicro- flashphotography is possible 5) flash-light acceptance angle coincides with lens picture angle. |
With the OM-2n (or any other OM body),
the Quick Auto 310 cannot achieve TTL Auto. Four 1.5V "AA" batteries must be used (Ni-Cd batteries may not be used). Accessory Shoe 1 or 2 (for TTL Auto with OM-2) must be mounted on the OM camera body. Synchro Cord is necessary for a camera having no hot shoe and for off-camera flash operation. To perform Normal Auto bounce flash, Bounce Grip and Remote Sensor are required with OM-1 (or other camera). For TTL Auto bounce flash, Bounce Grip and TTL Auto Cord 0.6m with OM-2 + Accessory Shoe 2. Lens Pouch 200 can also be used to hold the Quick Auto 310. |
Main specifications
| Type: Energy-saving, series-circuit type automatic exposure flash. | Connection to camera Mechanical: clip-on type (via accessory shoe) or grip type (via Bounce Grip). Electrical: Direct contact (hot shoe), or via Synchro Cord or TTL Auto Cord 0.6m. |
| Guide Number: 34 at peak (m, ASA 100) | Dial setting: TTL Auto / Normal Auto / Manual rotating dial. |
| Coverage angle: 50° vertical, 80° horizontal | TTL AUTO (Quick Auto 310 only) Aperture setting: continuous, accords with aperture ring setting of camera-linked lens. Working range: 0.25m-23m (100 ASA, F1.2 lens). Bounce flash: Bounce Grip + TTL Auto Cord 0.6m. |
| Flash duration: 1/40.000~1/1000 sec. | NORMAL AUTO Aperture setting: Choice of three apertures (F4, F5.6, F8 at 100 ASA). Working range: 0.5m-8.5m (100 ASA). Bounce flash: Bounce Grip + Remote Sensor (Sensor Acceptance angle: approx. 20°). |
| Recycling time: 0.2-12 sec. with AA Alkaline batteries. | Manual flash guide numbers: HI-GN 34 (ASA 100, m); LOW-GN 17 (ASA 100, m). |
| Flashes per set of AA Alkaline batteries: 100~400 on Normal and TTL Auto modes. | Power Sources: 1) Four 1.5V AA 'penlight'batteries (Ni-Cd batteries cannot be used) 2) Bounce Grip 3) F.AC Adapter 4) 315V Power Pack1 |
| Color temperature: 5800°K. | Dimensions and weight: 99x80x73mm, 330g without batteries. |
1 The 315V Power Pack was abolished in some countries, and was discontinued because it was electrically unsafe.
