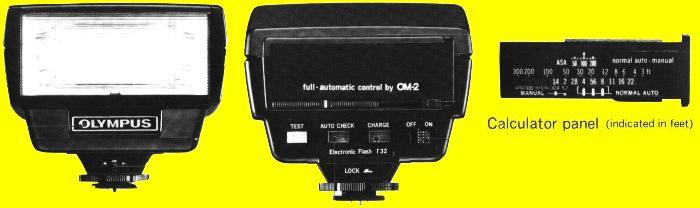

Flashphoto Group Electronic Flash T32
| Summary | Main Characteristics | Notes - Related Units |
| Energy-saving, series-circuit type, system electronic flash unit. TTL Auto, Normal Auto (3 apertures) and Manual can be instantly selected. Charge/Auto check lamp is visible in both the viewfinder (not on the OM-1/OM-2) and on the back of the T32. |
Guide number 32m (ASA 100). The coverage angle is almost equal to the picture angle of a 24mm super wide angle lens. Vertical bounce mechanism is built-in. TTL Auto: reflected flash light is measured Off The Film. The features of the system are: 1) ASA flm speed and aperture need not be set on the flash. 2) lens aperture is used continuously 3) extensive working range 25cm~26m (F1.2 lens, ASA 100) 4) auto macrophotography and photomicro- flashphotography is possible 5) flash-light acceptance angle coincides with lens picture angle. |
Four 1.5V "AA" batteries (including Ni-Cd) may be used. Zoom Adapter, Wide Adapter, ND filters and color filters are optionally avalable. The T32 cannot be used on a camera having no hot shoe. Integrated TTL Auto Cord Socket facilitates off-camera flash w/o Power Bounce Grip 2. The external power socket is used in conjunction with the F.AC Adapter 2. The following flashphoto group units are exclusively for use with the Quick Auto 310 and cannot be used with a T series flash: Bounce grip, Synchro Cord, Remote Sensor, TTL Auto Cord, 315V Power Pack 1 and F.AC Adapter. |
Main specifications
| Type: Energy-saving, series-circuit type Centralized Control (TTL Auto) flash unit with Normal Auto and Manual capability). | Connection to camera Mechanical: clip-on type (via accessory shoe) or grip type (via Power Bounce Grip 2). Electrical: Direct contact (hot shoe), or via Power Bounce Grip 2 or via built-in TTL Auto Cord Socket. |
| Guide Number: 32m (ASA 100) | Calculator Panel: Reversible plate type - blank side for TTL Auto mode on cameras that support TTL flash and calculator side for Normal Auto and Manual modes. Available with scale either in meters or in feet. |
| Coverage angle: 53° vertical, 74° horizontal (covers picture area
of 24mm lens). Tilting angle of flash diffuser window: Down 15°, Up 90°. Down-tilt can be blocked by Stop Knob. |
TTL AUTO Aperture setting: continuous, accords with aperture ring setting of camera-linked lens. Working range: 0.25m-26m (100 ASA, F1.2 lens). Bounce flash: with built-in bounce mechanism of Flash Diffuser Window or Power Bounce Grip 2 + TTL Auto Cord T 0.3 or 0.6m. Flash confirmation: flash ready and flash OK LED on the flash. Viewfinder indication contact provided. |
| Flash duration: 1/50.000~1/1000 sec. | NORMAL AUTO Aperture setting: Choice of three apertures (F4, F5.6 and F8 at 100 ASA). Sensor Acceptance Angle: approx. 20°. Working range: 1m-8m (F4, 100 ASA),0.7-5.6m (F5.6, 100 ASA) , 0.5-4m (F8, 100 ASA) . Bounce flash: with built-in bounce mechanism of Flash Diffuser Window. Flash confirmation: flash ready and flash OK LED on the flash. Viewfinder indication contact provided. |
| Recycling time: 0.2-10 sec. with AA Alkaline batteries on TTL Auto and Normal Auto. | Manual flash guide numbers: HI-32 (ASA 100, m) and LOW-16 (ASA 100, m). |
| Flashes per set of AA Alkaline batteries: 100~500 on TTL Auto and Normal Auto modes. | Power Sources: 1) Four 1.5V AA 'penlight'batteries (incl. Ni-Cd batteries) 2) Power Bounce Grip 2 3) F.AC Adapter 2. |
| Color temperature: 5800°K. | Dimensions and weight: 104x81x70mm, 320g without batteries. |
