TTL Auto Cords T / T2

Flashphoto Group TTL Auto Cords T 0.3m / 0.6m / Shoe Cord 0.6m / 2m / 5m
TTL Auto Cords T2 0.1m / 0.15m

Summary	Main Characteristics	Notes - Related Units

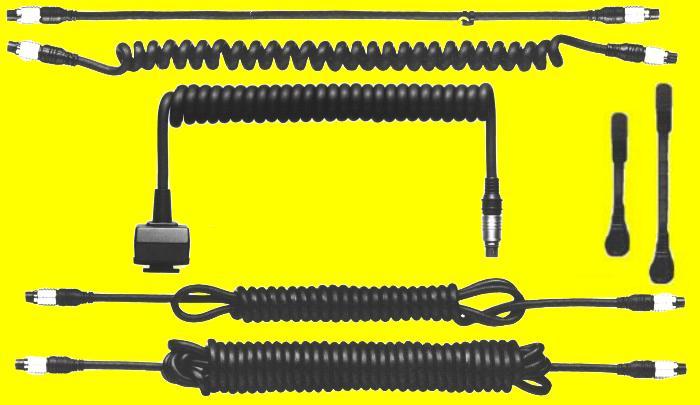

These extension cords are required for off-camera flash operation, to connect a T-series flash unit to an OM camera. There are seven different types to meet every possible flash setup. TTL Auto Cord T 0.3m is intended for use with the Power Bounce Grip 2. TTL Auto Cord T 0.6m is a spiral type, extendable from 0.3m to 0.6m, also suitable for use with the Power Bounce Grip 2, or for instance a flash mounted on a long flash bracket. TTL Auto Shoe Cord T 0.6 is also a spiral type, extendable from 0.3m to 0.6m; one side has a Hot Shoe Mount instead of a plug, intended for cameras that don't have a (optional or built-in) TTL Auto Connector. TTL Auto Cord T 2m and TTL Auto Cord T 5m can be used to position the flash at longer distances from the camera, for instance tripod-mounted. TTL Auto Cord T2 0.1m has two plugs that make a 90º angle with the cord; connects the T45 flash to the built-in TTL Auto Connector of the OM-Sp, OM-3(Ti) or OM-4(Ti); this cord uses less space, because there are no protruding parts. TTL Auto Cord T2 0.15m is intended for use with the T45 and a Motor Drive.	They provide off-camera TTL "OTF"Auto flash and viewfinder charge / Auto Check indication with compatible cameras. The plug at each end is locked in mechanically when fully inserted into the terminal socket (TTL Auto Socket), preventing accidental removal while in operation. One side of the cord has a small movable hook¹ that can be hooked in the shoulder strap eyelet of the camera, further preventing accidental removal while in operation, and creating more space round the lens. Coupled with several TTL Auto Multi Connectors, off-camera flash as remote as 30m is possible.	Flash units other than T-series cannot be used. To unplug the cord, hold the metal ring (not the cord) tightly and pull. The OM-2Sp, OM-3, OM-3Ti, OM-4 and OM-4Ti have built-in TTL Auto Connectors that directly accept a TTL Auto Cord T or T2. On the OM-2 the TTL Auto Connector Type 3 can be mounted to the camera in place of the Accessory Shoe. On the OM-1n and OM-2n the TTL Auto Connector Type 4 can be mounted to the camera in place of the Accessory Shoe. Other cameras can use the TTL Auto Shoe Cord T 0.6m. The TTL Auto Cords T2 can only be used with an OM-Sp, OM-3(Ti) or OM-4(Ti) and the T45 flash. For use with the T20, the TTL Auto Connector T20 is required.

¹ Does not apply to the TTL Auto Shoe Cord T 0.3m, TTL Auto Cord T2 0.1m or TTL Auto Cord T2 0.15m.
