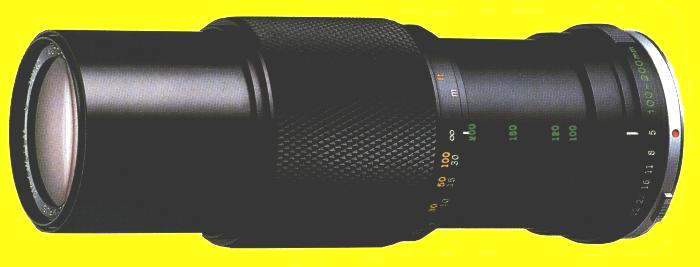

Lens Group       S Zuiko Zoom 100-200mm/F5



Characteristics

Applications

Notes - Related Units

A two times zoom designed for exceptional cost performance, compactness, lightness and speed.
The one-touch design allows simultaneous zooming and focusing which can be essential when fast action is required.
Because of the constant F5 speed split-image and microprism focusing aids are still very usable.
This is the only zoom lens that is recommended in combination with the Olympus 2xA teleconverter, which transforms it into a 200-400mm/F10 super tele zoom lens.
Portraits.
Mountains.
Scenery.
Sports.
Documentary.
For hand-held photography, a shutter speed of 1/250 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-4, 1-6, 1-10, 1-13, 1-14.

Specifications

Angle of view

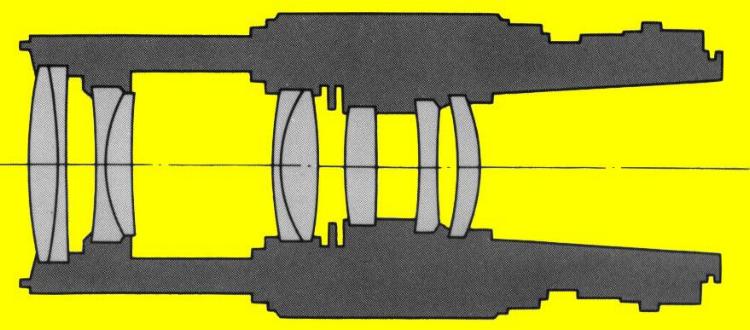

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

24°-12°

9-6

Auto

5-32

2.4m.

69x46cm(100mm)
37-25cm(200mm)

rotating focusing helicoid and push-pull zoom ring

570g.

148mm

63mm.

Built-in

49mm
Screw-in

Download instructions (0.53 Mb)
