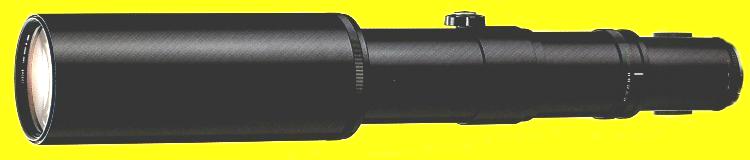

Lens Group       Zuiko 1000mm/F11



Characteristics

Applications

Notes - Related Units

The smallest and lightest of 1000mm super telephoto lenses.
Automatic diaphragm contributes to comfortable operation.
The non-removable tripod ring is rotatable allowing easy operation for horizontal and vertical camera positioning.
Celestial bodies, mountains.
Sports events.
Wild life.
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-4, 1-7, 1-8 and 1-10.

Specifications

Angle of view

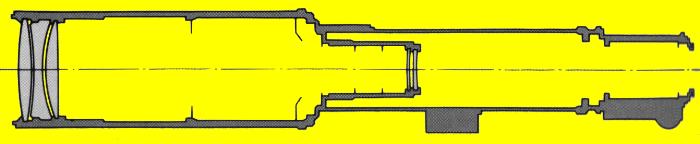

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

2.5°

5-5

Auto

11-45

30m.

98x65cm.

Rack and pinion

4000g.
[4150g.]

662mm.

110mm.

Built-in

100mm
Screw-in
