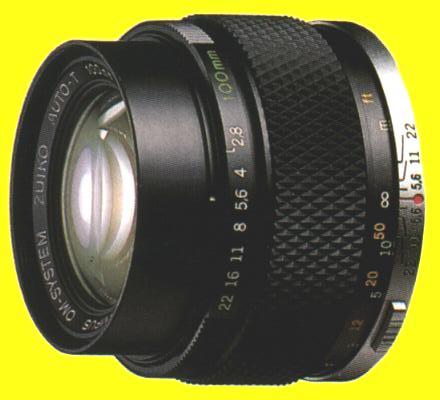

Lens Group       Zuiko 100mm/F2.8



Characteristics

Applications

Notes - Related Units

As small and light as a conventional standard lens.
It has high resolving power and reveals pleasing out of focus foregrounds and backgrounds.
Aberrations are minimized for superb image quality even at close focusing distances.
Portraits.
Snapshots.
Interiors, stage plays.
For hand-held photography, a shutter speed of 1/125 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-6,1-10,1-13,1-14.

Specifications

Angle of view

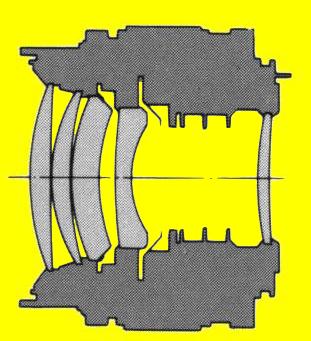

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

24°

5-5

Auto

2.8-22

1m.

29x19cm.

  Straight helicoid

230g.

48mm.

60mm.

49mm
Screw-in

49mm
Screw-in
