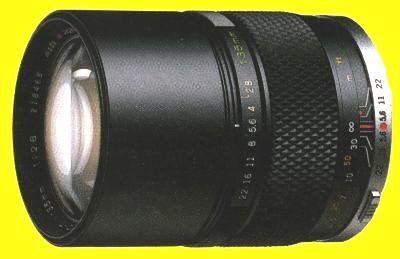

Lens Group       Zuiko 135mm/F2.8



Characteristics

Applications

Notes - Related Units

The 135mm is the most popular among telephotos because it is small, light, easy to handle and produces satisfactory telephoto effect.
Despite the bright F2.8 aperture, it is extremely compact.
Various aberrations are well compensated, it offers high resolution and excellent contrast.
Portraits.
Scenery.
Indoor sports, stage plays.
For hand-held photography, a shutter speed of 1/125 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-6,1-10,1-13,1-14.

Specifications

Angle of view

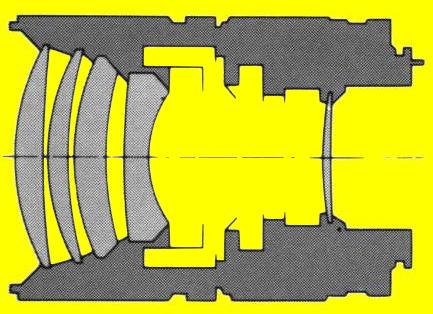

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

18°

5-5

Auto

2.8-22

1.5m.

32x21cm.

  Straight helicoid

360g.

80mm.

61mm

Built-in

55mm
Screw-in
