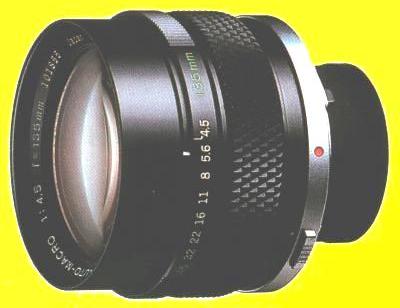

Lens Group       Zuiko Macro 135mm/F4.5



Characteristics

Applications

Notes - Related Units

This high resolution macro lens is used with the Telescopic Auto Tube 65~116 or Auto Bellows to provide long working distances (37cm-infinity) and minimize perspective deformations in close-ups (max. magnification 0.5x).
Its long working distance capability enables the photographer to take enlarged images of a subject from a comfortable distance.
It can also be used in the same way as an ordinary 135mm telephoto lens.
Medical close-up and macrophotography.
Outdoor action macrophotography (insects etc.).
General telephoto photography.
Though its maximum speed is F4.5, open aperture viewing is at F4 to make focusing easier.
This lens must be used in combination with the Auto Bellows or the Telescopic Auto Tube 65~116.
With the 65~116, automatic diaphragm and meter coupling is possible. With the Auto Bellows, automatic coupling is made using the Double Cable Release.
With hand-held photography the use of a flash is recommended to prevent blurred images caused by movements.
Compatible focusing screens: 1-1~1-4, 1-10, 1-11, 1-13, 1-14.

Specifications

Angle of view

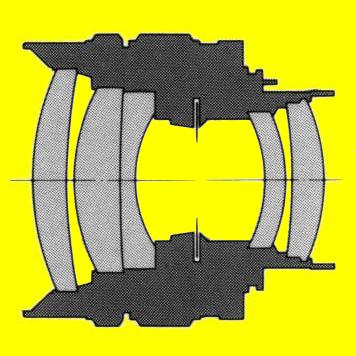

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

18°

5-4

Auto

4.5-45

0.6m.

48x72mm

with Auto Bellows, 65~116; fine focusing straight helicoid built-in.

320g.

47mm.

60mm.

57mm
Slide-on

55mm
Screw-in
