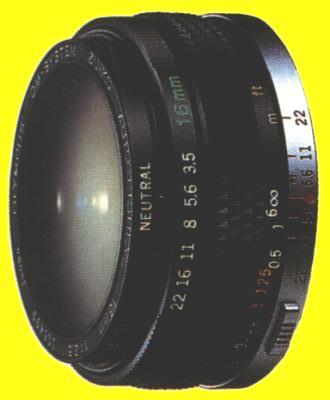

Lens Group       Zuiko Fisheye 16mm/F3.5





Characteristics

Applications

Notes - Related Units
The 180° diagonal angle of view produces panoramic hemispherical perspective.
The 44-mm ø image circle covers 35mm film format fully.
It is incomparably compact for a fisheye with maximum aperture of F3.5.
It requires no mirror lock-up in use.		 Special effects taking advantage of the distortion typical of a fisheye. Midway setting of the filter switch dial will cast a partial shadow on the picture.
The protruding front surface must be protected with a cap when not in use.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

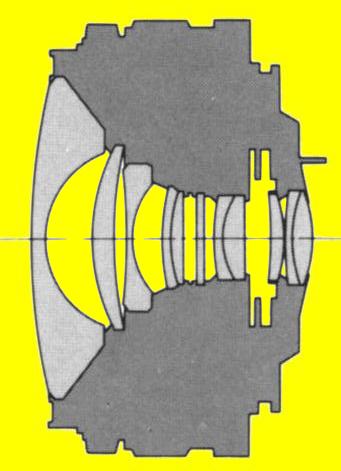

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

180°

  11-8

Auto

3.5~22

0.2m.

-

Straight helicoid

180g.

31mm.

59mm.

Not necessary

Built-in
(L39,Y48,
O56)
