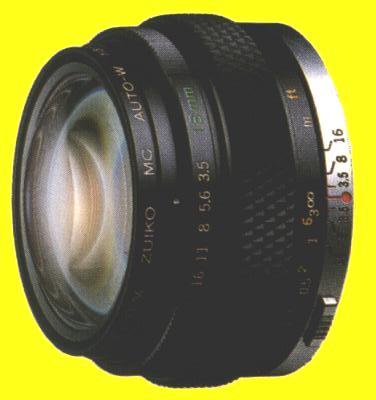

Lens Group       Zuiko 18mm/F3.5



Characteristics

Applications

Notes - Related Units

This lens spans an incredible 100° angle of view.
Fast, compact and provides full aperture, TTL viewing (no mirror lock-up is required).
Dramatically exaggerated perspective effects are possible without distortion.
Floating elements automatically eliminate aberrations when the lens is used at close distances.
Dramatic interior, architectural and creative "wide effect" photography. To protect the lens surface, replace the cap when not in use.
The optional Adapter ring 49->72mm is necessary to use a filter.
This unit also acts as a lens hood.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

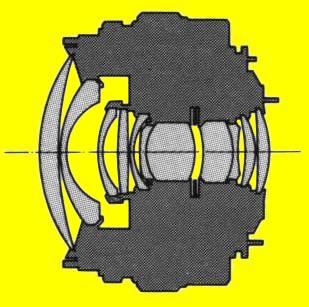

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

100°

11-9

Auto

3.5-16

0.25m

30x20cm.

Straight helicoid

250g.

42mm.

62mm

49mm
Adapter Ring
49->72

72mm
Screw-in
(w.Adapter
Ring 49->72)

Download instructions (0.47 Mb)
