Lens Group       Zuiko 200mm/F4



Characteristics

Applications

Notes - Related Units

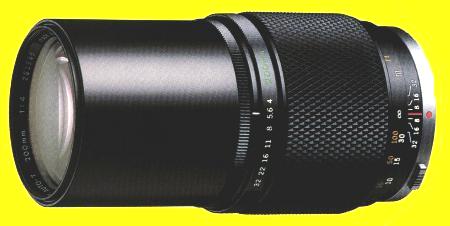

This relatively fast and very compact 200mm lens is ideal for hand-held telephotography.
Aberration compensation is well balanced, giving excellent resolution from corner to corner.
Indoor sports.
Scenery.
Stage plays.
For hand-held photography, a shutter speed of 1/250 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-4, 1-6, 1-7, 1-10, 1-13, 1-14.

Specifications

Angle of view

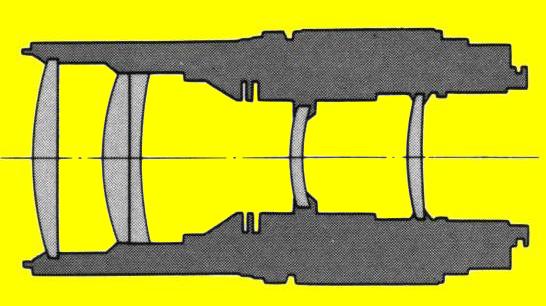

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

12°

5-4

Auto

4-32

2.5m.

36x24cm.

  Straight helicoid

510g.

127mm.

67mm.

Built-in

55mm
Screw-in
