Lens Group       Zuiko 200mm/F5



Characteristics

Applications

Notes - Related Units

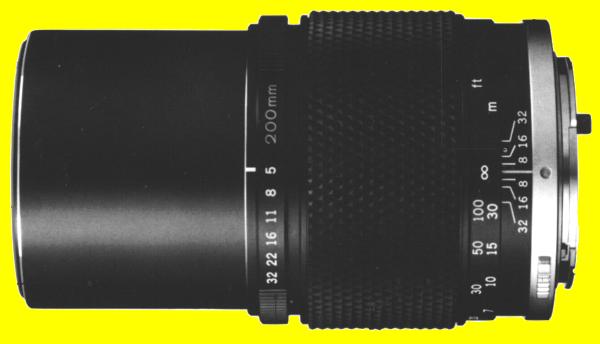

Despite its focal length of 200mm, it is amazingly short with a filter size as small as 49mm.
It features a deluxe construction of 6 elements which successfully corrects aberrations to ensure high resolution over the whole picture.
The extremely compact form make it ideal for hand-held telephotography.
Snapshots.
Sports events.
Animal studies.
Scenery.
For hand-held photography, a shutter speed of 1/250 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-4, 1-6, 1-10, 1-13, 1-14.

Specifications

Angle of view

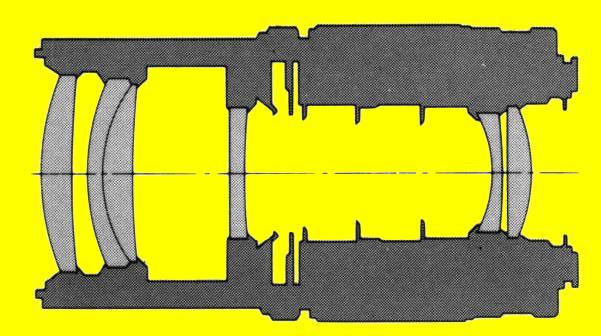

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

12°

6-5

Auto

5-32

2.5m.

36x25cm.

  Straight helicoid

380g.

105mm.

62mm.

Built-in

49mm
Screw-in
