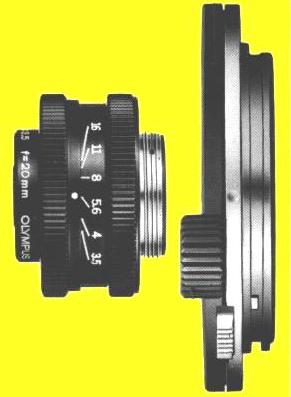

Lens Group       Zuiko Macro 20mm/F3.5 / Objective Lens Mount PM-MTob



Characteristics

Applications

Notes - Related Units

This high-resolution macro lens is designed for 4x~12x magnifications (object sizes 8x5mm~3x2mm). High-magnification macrophotography. This lens must be used in conjunction with the Auto Bellows and Objective Lens Mount PM-MTob.
Because the aperture is manual, stopped down metering is required; focusing is easier with the aperture wide open.
Compatible focusing screens: 1-11, 1-12.

Specifications

Angle of view

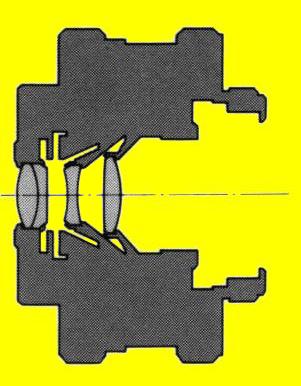

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

9° at highest magnification

4-3

Manual

3.5-16

-

max.8x5mm.
min. 3x2mm.

with Auto Bellows

70g.

20mm.

32mm.

Not necessary

21mm
Slide-on
