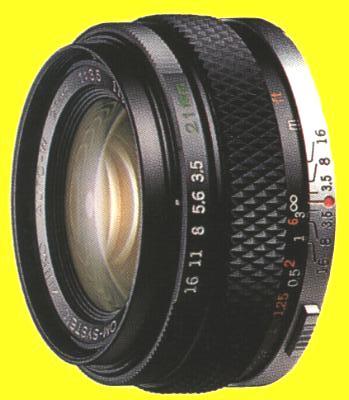

Lens Group       Zuiko 21mm/F3.5

Characteristics

Applications

Notes - Related Units

It expresses dynamic perspective typical of super wide angle lenses.
It achieves unprecedented compactness as indicated by the 49mm filter size.
It has unusually high resolution and contrast due to newly developed design.
Aberration compensation is well balanced and the lens features superb image quality even at close focusing distances.
Architecture and restricted interiors.
Snapshots.
Panoramic landscapes and skies.
Exaggerated perspective effects.
Use of non-Olympus filter may darken picture corners.
Combination use of two or more filters may darken picture corners.
Lens hood is sold separately.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

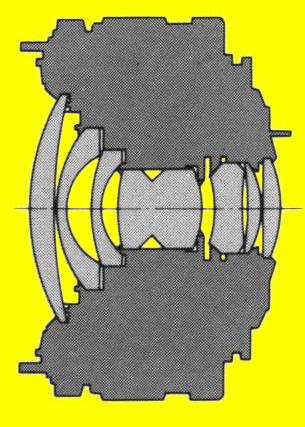

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

92°

7-7

Auto

3.5-16

0.2m.

21x14cm.

  Straight helicoid

180g.

31mm.

59mm.

49mm
Screw-in

49mm
Screw-in
