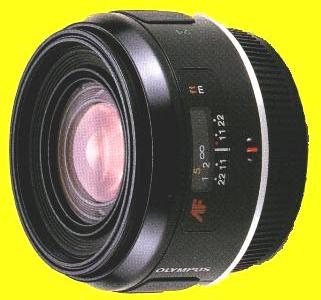

Lens Group       Olympus Lens AF 24mm/F2.8



Characteristics

Applications

Notes - Related Units

A super wide-angle autofocus lens of ultra compact and lightweight design, with a sophisticated 8-element in 7-group optical configuration.
Outstanding high contrast images even in sensitive shadow areas, plus consistently impeccable color reproduction.
Entirely controlled by the OM-707 AF or OM-101 PF body, for exceptional convenience in use as well as beautifully smooth appearance.
Family gatherings.
Architecture and restricted interiors.
Snapshots.
Exaggerated perspective.
This lens cannot be used on cameras other than the OM-707 or OM-101.
When this lens is attached to the OM-707 or OM-101, the Auto Program Shift function automatically selects the wide-angle lens program.
Programmed aperture selection can be overruled by the OM-101 in combination with Manual Adapter 2 and on the OM-707 by means of Program Shift.

Specifications

Angle of view

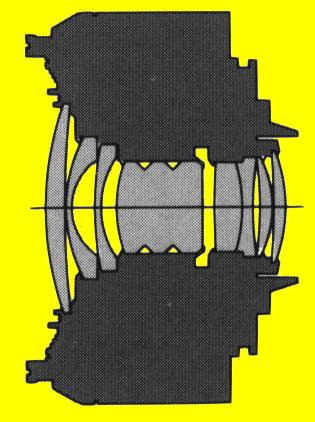

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

84°

8-7

Automatic control on camera body

2.8-22

0.25m.

24x16cm.

  Driven by AF/PF coupler on camera body

170g.

32mm.

62mm.

 Built-in

49mm
Screw-in

Download instructions (0.45Mb)
