Lens Group       S Zuiko Zoom 28-48mm/F4



Characteristics

Applications

Notes - Related Units

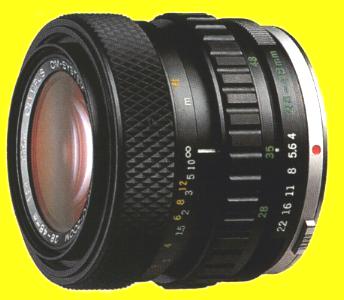

This wide angle zoom is designed to be as light and compact as a fixed focus lens.
Adoption of the two group zoom system with preceding convex lens elements permits compactness as well as thoroughgoing correction of the distortion common with early wide angle lenses.		 Snapshots.
Landscapes.
Interiors.
Vacation shots.		 Compatible focusing screens: 1-1~1-5, 1-8, 1-10, 1-13, 1-14.

Specifications

Angle of view

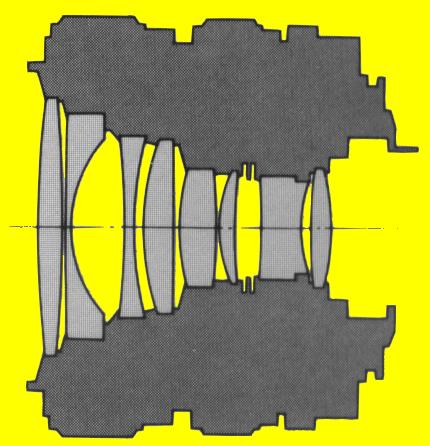

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

75°-49°

8-8

Auto

4-22

0,65m.

74x49cm(28mm)
46x31cm(48mm)

  Rotating helicoid

  300g.

54mm (at 48mm setting)

65mm

55mm
Screw-in

49mm
Screw-in
