Lens Group       Olympus Lens AF Zoom 28-85mm/F3.5-4.5



Characteristics

Applications

Notes - Related Units

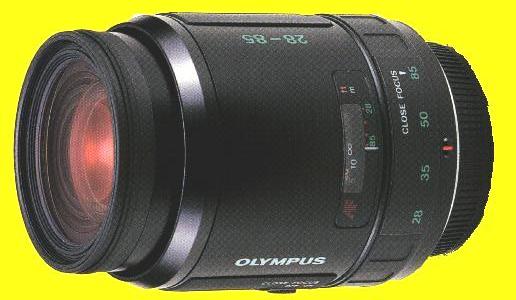

An advanced autofocus 3x zoom lens with 14 elements in 11 groups for extensive coverage from wide-angle to short telephoto subjects.
State-of-the art optical technology provides for aberration correction throughout the operating range and ensures clear, stable images at any focal length between 28 and 85mm.
The built-in close focus mechanism permits autofocusing as close as 0.6m, making this easily portable zoom excellent and highly versatile for use as standard equipment.
Entirely controlled by the OM-707 AF or OM-101 PF body, for exceptional convenience in use as well as beautifully smooth appearance.		 Portraits (individual and group).
Snapshots, scenery.
Family gatherings and weddings.
Photojournalism.
Vacations.		 This lens cannot be used on cameras other than the OM-707 or OM-101.
When this lens is attached to the OM-707, the Auto Program Shift function automatically selects the wide angle or tele lens program, according to the focal length.
Programmed aperture selection can be overruled by the OM-101 in combination with Manual Adapter 2 and on the OM-707 by means of Program Shift.

Specifications

Angle of view

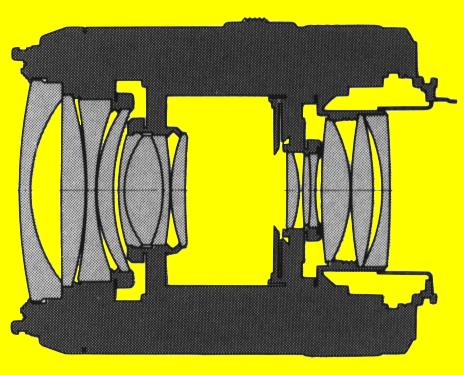

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

75°-29°

14-11

Automatic control on camera body

3.5-22(28mm)
4.5-27(85mm)

0.8m.
(at close focus: 0.6m.)

85-57cm(28mm)
22x15cm(85mm)

  Driven by AF/PF coupler on camera body

480g.

84mm

69mm

Slide-on

55mm
Screw-in
