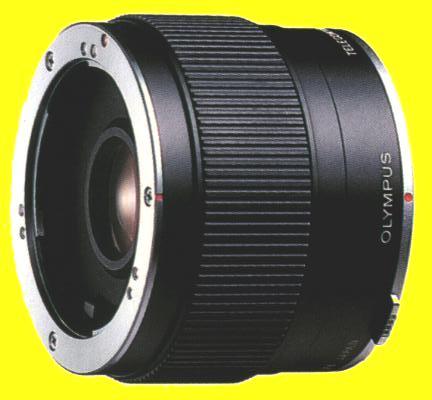

Teleconverter 2xA

Characteristics	Applications	Notes - Related Units
A teleconverter that multiplies the focal length of the main lens by a factor of 2, while reducing the effective lens speed by two stops. This converter can be used with the following lenses: 1) 50-250mm/F5 zoom 2) 100mm/F2.8 3) 135mm/F2.8 4) 135mm/F3.5 5) 200mm/F4 6) 200mm/F5 7) 100-200mm/F5 zoom These lenses will effectively be converted into: 1) 100-500mm/F10 zoom 2) 200mm/F5.6 3) 270mm/F5.6 4) 270mm/F7 5) 400mm/F8 6) 400mm/F10 7) 200-400mm/F10 zoom	Comfortable in all circumstances where carrying an extra telephoto or super telephoto lens is not practible. The converter costs much less than any of the (super) telephoto lenses it can replace.	Trying to use this converter in combination with other lenses than those named under 'Characteristics', specially lenses with protruding rear elements, may seriously damage both the lens and the converter. When focusing screens with a split image and / or microprisms are used, the centre of the viewfinder may darken. In this case focusing must be done on the matte ground surface. Although the 2X-A Teleconverter is unbeatable for convenience, when it comes to sharpness there is no substitute for a telephoto lens of the specific focal length. If the central focusing aid darkens because of the reduced lens aperture, focus on the matte surface.

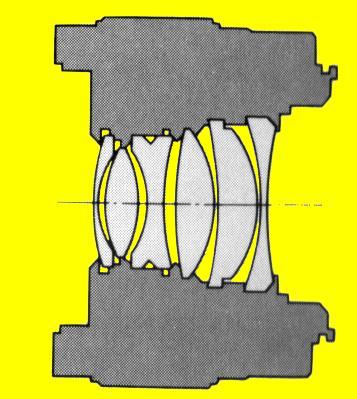

Optical construction El.-Group	Diaphragm	Focusing	Minimum focus (of main lens)	Weight	Length	Max. diameter
6-6	Auto (automatic operation of main lens retained)	With focus ring of main lens	Same as main lens used without converter	215g.	48mm.	62mm.
