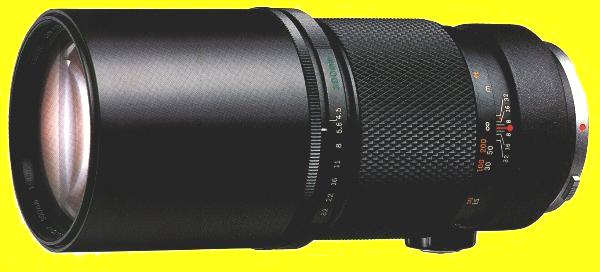

Lens Group       Zuiko 300mm/F4.5



Characteristics

Applications

Notes - Related Units

It is the smallest and lightest lens in this length permitting comfortable hand-held photography.
The tripod mount ring is removable for convenience in hand-held photography.
Action photography, sport events.
Wild life.
Mountains, scenery.
For hand-held photography, a shutter speed of 1/500 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-4, 1-6~1-8, 1-10, 1-13, 1-14.

Specifications

Angle of view

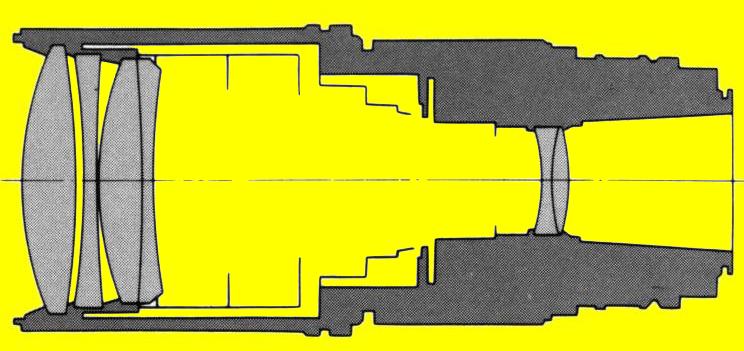

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

6-4

Auto

4.5-32

3.5m.

33x22cm.

  Straight helicoid

1100g.
(1020g.
w/o tripod
collar)

181mm.

80mm.

Built-in

72mm
Screw-in
