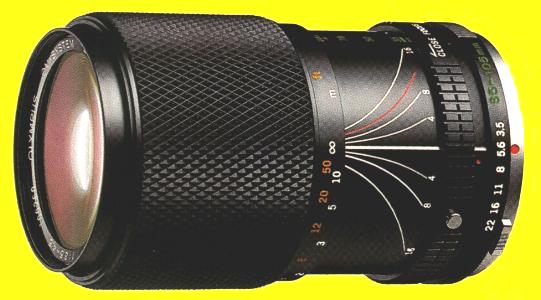

Lens Group       Zuiko Zoom 35-105mm/F3.5-4.5



Characteristics

Applications

Notes - Related Units

This universal 3x zoom covers the range from 35mm wide angle to 105mm medium telephoto and thus replaces three or four separate fixed focal length lenses.
The extra 35mm this lens has on the tele-side when compared to a 35-70 2x zoom makes this lens better suited for portraits because it allows a bigger distance.
The one-touch design allows simultaneous zooming and focusing which can be essential when fast action is required.
A special close focus mechanism makes this lens even more versatile by allowing focusing at 0.31m in the entire zoom range.
The light, compact design assures an excellent balance with the OM camera bodies.
Portraits (individual and group).
Snapshots, scenery.
Family gatherings and weddings.
Photojournalism.
Vacations.
Compatible focusing screens: 1-1~1-4, 1-6, 1-10, 1-13, 1-14.

Specifications

Angle of view

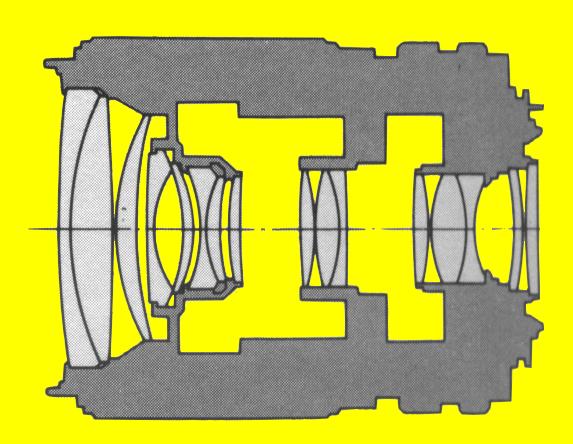

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°-23°

16-12

Auto

3.5-22(35mm)
4.5-22(105mm)

1.5m
(0.31m. at close focus)

129x86cm(35mm)
45x30cm(105mm)
close focus:
18x12cm(35mm)
25x17cm(105mm)

rotating focusing helicoid and push-pull zoomring

470g.

85mm

64mm

55mm
Screw-in

55mm
Screw-in

Download instructions (0.42 Mb)
