Lens Group       S Zuiko Zoom 35-70mm/F3.5-4.5



Characteristics

Applications

Notes - Related Units

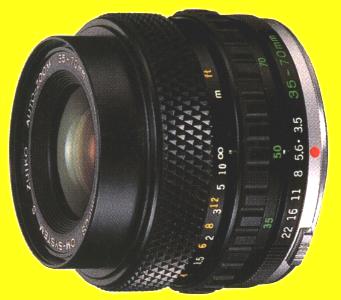

This super lightweight, compact zoom is a mere 51mm long and weighs just 190g.
This zoom features a variable open aperture value, but when the aperture is closed down to F4.5 (marked by a white dot) or more, the F value remains constant throughout the zooming range.
This makes the lens ideal for use of the zoom function during spot metering.
A close focus mechanism allows focusing at 45 cm on the entire zoom range.
General photography.
Snapshots.
Vacations.
Compatible focusing screens: 1-1, 1-6, 1-10, 1-13, 1-14.

Specifications

Angle of view

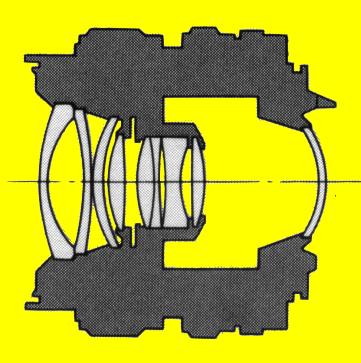

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°~34°

9-8

Auto

3.5-22

0.45m.

21.7x14.5cm
(close focus, at 70mm)

  Rotating helicoid

190g.

51mm.

62mm.

51mm
Slip-on

49mm
Screw-in

Download instructions (0.45 Mb)
