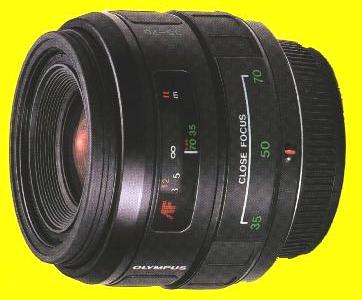

Lens Group       Olympus Lens AF Zoom 35-70mm/F3.5-4.5



Characteristics

Applications

Notes - Related Units
A compact, lightweight, easy-to-use autofocus 35-70mm zoom lens that is also suitable for use as a standard lens.
Sophisticated optical technology assures high resolution and natural colour balance. Correction for aberrations over the entire focal length range guarantees stable image reproduction in both wide-angle and telephoto positions.
Built-in close focus mechanism provides for autofocus from as close as 0.45m.
Entirely controlled by the OM-707 AF or OM-101 PF body, for exceptional convenience in use as well as beautifully smooth appearance.		 General photography.
Snapshots.
Vacations.		 This lens cannot be used on cameras other than the OM-707 or OM-101.
When this lens is attached to the OM-707, the Auto Program Shift function automatically selects the standard lens program.
Programmed aperture selection can be overruled by the OM-101 in combination with Manual Adapter 2 and on the OM-707 by means of Program Shift.

Specifications

Angle of view

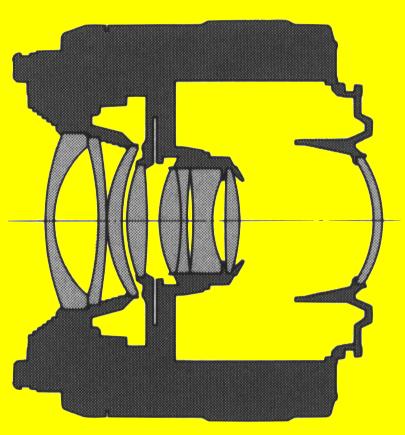

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°-34°

9-8

Automatic control on camera body

3.5-22(35mm)
4.5-32(70mm)

0.75m.
(at close focus: 0.45m.)

40.4x27cm(35mm)
21.7x14.5cm(70mm, close focus)

  Driven by AF/PF coupler on camera body

250g.

53mm.

69mm.

Slide-on

49mm
Screw-in
