Lens Group       Zuiko Zoom 35-70mm/F3.6



Characteristics

Applications

Notes - Related Units

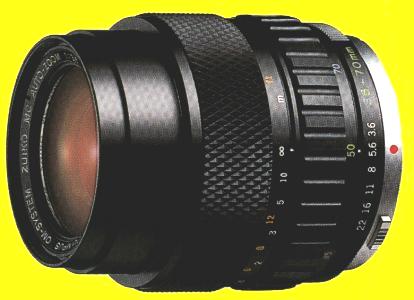

This high speed standard zoom lens features a compact lightweight design making it very convenient for everyday use.
Correct focus is maintained throughout the zoom range and performance is as high as with fixed focus lenses.
Portraits (individuals and groups).
Snapshots, scenery.
Family gatherings and weddings.
The supplied hood may be reversed for convenience in storing.
Compatible focusing screens: 1-1~1-6, 1-10, 1-13, 1-14.

Specifications

Angle of view

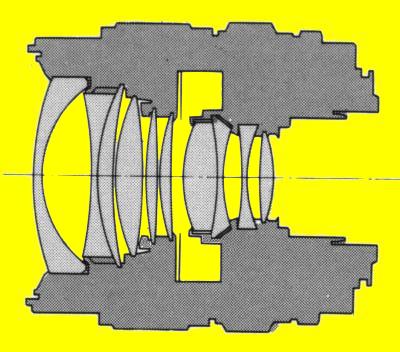

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°-34°

10-8

Auto

3.6-22

0.8m.

72x48cm(35mm)
37.5-25cm(70mm)

  Straight helicoid

400g.

74mm.

67mm.

60mm
Slide-on

55mm
Screw-in

Download instructions (0.5 Mb)
