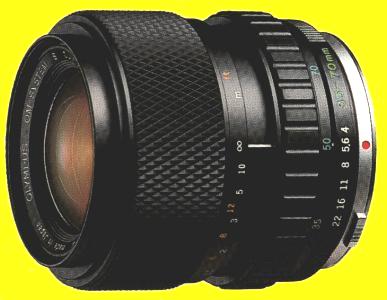

Lens Group       S Zuiko Zoom 35-70mm/F4



Characteristics

Applications

Notes - Related Units

This standard zoom lens features a compact lightweight design making it very convenient for everyday use.
Correct focus is maintained throughout the zoom range and performance is comparable to fixed focus lenses.
Portraits (individuals and groups).
Snapshots, scenery.
Family gatherings and weddings.
The supplied hood may be reversed for convenience in storing.
Compatible focusing screens: 1-1~1-5, 1-10, 1-13, 1-14.

Specifications

Angle of view

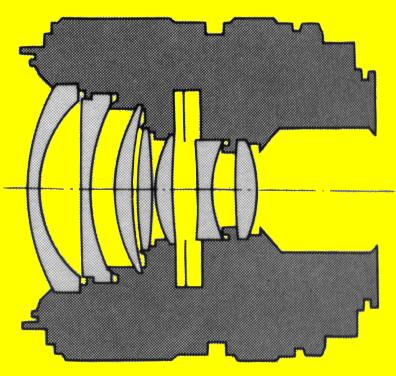

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

64°-34°

7-7

Auto

4-22

0.75m.

72x48cm(35mm)
36-24cm(70mm)

  Straight helicoid

385g.

71mm.

69mm.

57mm
Slide-on

55mm
Screw-in
