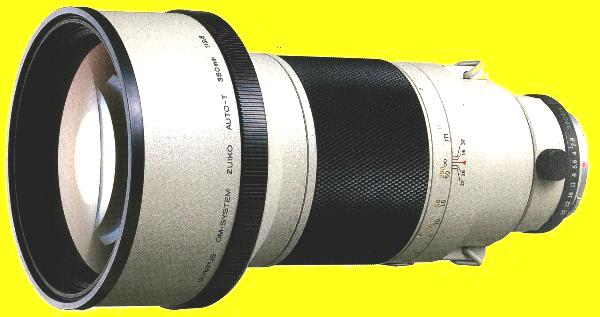

Lens Group       Zuiko 350mm/F2.8



Characteristics

Applications

Notes - Related Units

A large aperture super telephoto with a super bright F2.8.
An extremely powerful lens for dim subjects, especially in areas such as indoor sports or theatre, where fast shutter speeds are essential.
The provision of two lens elements of special low dispersion glass, and another of extraordinary partial dispersion glass successfully cuts chromatic aberrations to virtual insignificant proportions.
Image rendition is superb, with fantastic contrast and minimal colour separation at all distances from extreme close-ups to infinity.
The lens features inner focusing, makes focusing very fast.
The Olympus developed close focus aberration correction mechanism guarantees high level image quality at all subject distances.
Sports.
Stage plays.
Nature photography.
Dim light telephotography.
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.

Compatible focusing screens: 1-1~1-4, 1-6, 1-7, 1-10, 1-13, 1-14.

Specifications

Angle of view

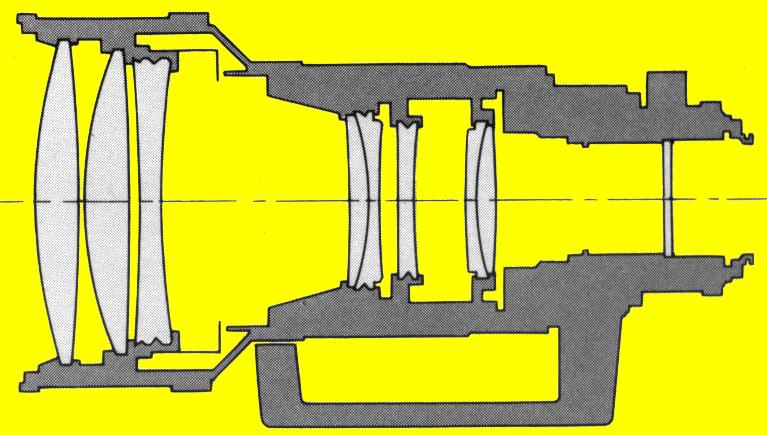

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

9-7

Auto

2.8-32

3m.

25x17cm.

Rotating cam
(Inner focus)

3900g.

280mm.

142mm.

Built-in

Slip-in
(46mm
rear
filter)
