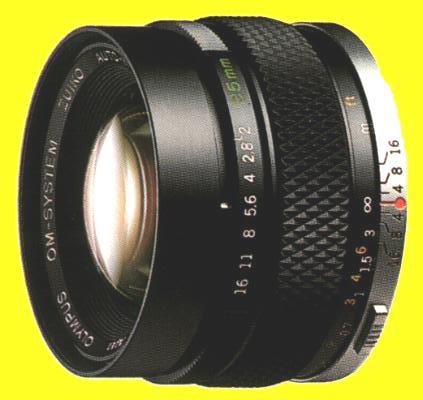

Lens Group       Zuiko 35mm/F2



Characteristics

Applications

Notes - Related Units

A 35mm focal length with a fast speed of F2.
The 35mm is an all-purpose and extremely convenient lens for everyday use.
It is one of the smallest lenses to be found in this class.
It exhibits superb definition and image quality over the entire picture area.
Snapshots of night scenes taking advantage of the fast speed.
Interiors.
Vacation trips and memorable occasions.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

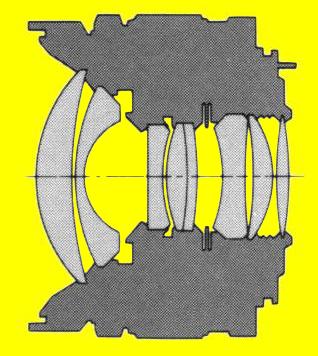

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°

8-7

Auto

2-16

0.3m

21x14cm.

  Straight helicoid

240g.

42mm.

60mm.

55mm
Screw-in

55mm
Screw-in

Download instructions (0.41 Mb)
