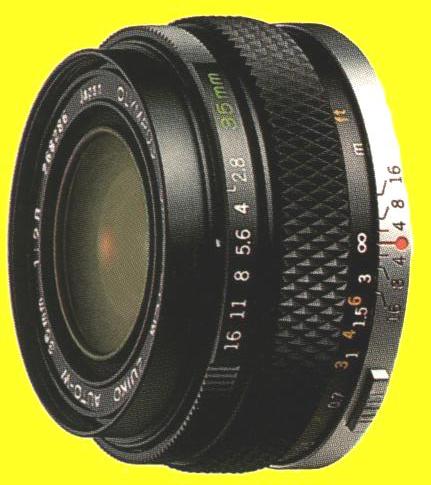

Lens Group       Zuiko 35mm/F2.8



Characteristics

Applications

Notes - Related Units

Most popular among wide angle lenses, the 35mm is so versatile that it is often used as a standard lens.
It reduces comatic flare inherent in wide angle lenses and gives razor-sharp definition
It is compact and pleasant to operate.

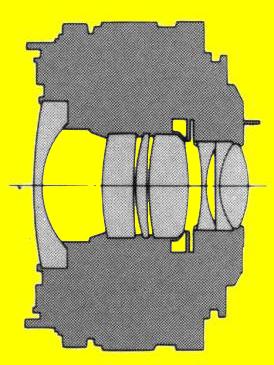

It has a deluxe 7-element construction.
Snapshots.
Interiors.
Vacation trips and memorable occasions.
Lens hood is sold separately.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

63°

7-6

Auto

2.8-16

0.3m.

21x14cm.

  Straight helicoid

180g.

33mm.

59mm.

51mm
Slide-on

49mm
Screw-in

Download instructions (0.39 Mb)
