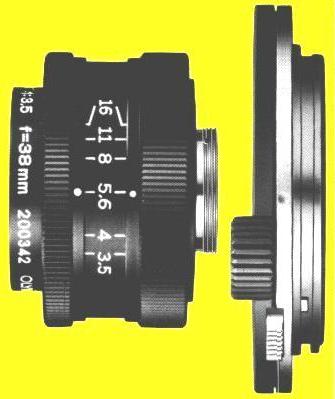

Lens Group       Zuiko Macro 38mm/F3.5 / Objective Lens Mount PM-MTob



Characteristics

Applications

Notes - Related Units

This high-resolution macro lens is designed for 1.8x~6x magnifications (object sizes 20x13mm~6x4mm). Macrophotography. This lens must be used in conjunction with the Auto Bellows and Objective Lens Mount PM-MTob.
Because the aperture is manual, stopped down metering is required; focusing is easier with the aperture wide open.
An aperture preset ring facilitates manual aperture operation.
Compatible focusing screens: 1-4, 1-10~1-12.

Specifications

Angle of view

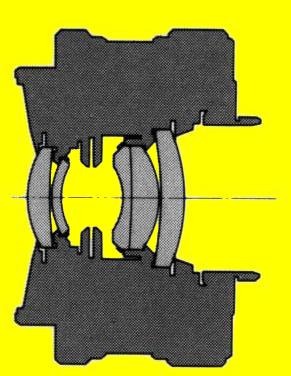

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

9° at highest magnification

5-4

Manual

3.5-16

-

max.20x13mm.
min. 6x4mm.

with Auto Bellows

90g.

28mm.

43mm.

Not necessary

32mm
Slide-on
