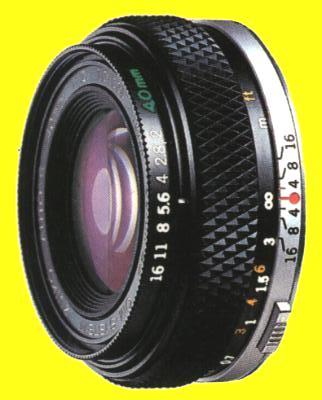

Lens Group       Zuiko 40mm/F2



Characteristics

Applications

Notes - Related Units

The 40mm semi-standard lens fills the gap between the 35mm semi wide angle and the 50mm standard lens, making it an ideal general purpose lens.
The smallest and lightest lens available in this class.
This lens can be regarded as the recreation of the 38mm/F2.8 "pancake" lens for the Olympus PEN F camera.
The large aperture of F2 makes available light photography easier.
The lens features minimum curvature of field and excellent performance effects with great contrast.
The min. focusing distance of 30cm. gives a max. reproduction ratio of 1/5 life size.
General photography.
Interior photograhy.
Snapshots and family gatherings.
Lens hood is sold separately.
Compatible focusing screens: 1-1~1-6,1-10,1-13,1-14.

Specifications

Angle of view

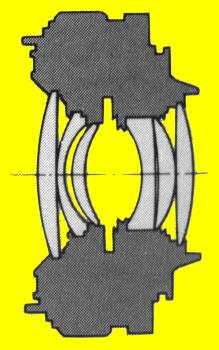

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

56°

6-6

Auto

2-16

0.30m.

18x12cm.

  Straight helicoid

140g.

25mm.

60mm.

49mm
Screw-in

49mm
Screw-in
