Lens Group       Zuiko 50mm/F1.2



Characteristics

Applications

Notes - Related Units

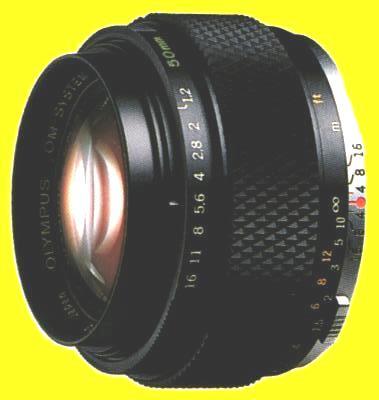

This multicoated lens replaces the G.Zuiko 55mm/F1.2 as the fastest standard lens.
Despite its fast aperture this lens is very compact featuring a filter size of 49mm.
This lens is designed to give almost perfect aberration correction.
It produces extremely pleasing out-of-focus effects at full aperture.
Night photography taking advantage of F1.2 maximum aperture.
Portraits taking advantage of out-of-focus effects at full aperture.
Interiors.
General photography.
Lens hood is sold separately.
Accurate focusing is required at full lens opening since the depth of field is extremely shallow.
Compatible focusing screens: 1-1~1-6,1-10,1-13,1-14.

Specifications

Angle of view

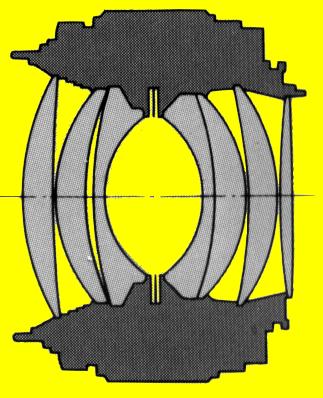

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

47°

7-6

Auto

1.2-16

0.45m.

24x16cm.

  Straight helicoid

285g.

43mm.

65mm.

51mm.
Slide-on

49mm
Screw-in
