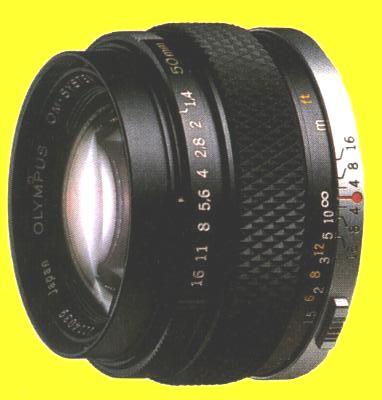

Lens Group       Zuiko 50mm/F1.4



Characteristics

Applications

Notes - Related Units

The second fastest lens in the OM System.
It is designed to minimize the total lenghth.

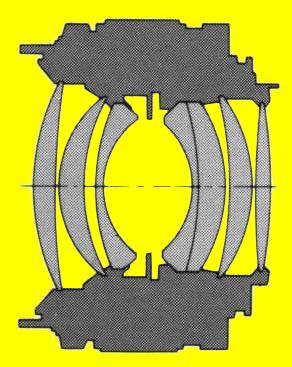

The sophisticated 7-element design produces high resolution and excellent contrast.
Sharp images are yielded even at maximum aperture.
Close-up to 45cm. is possible.
Night photography.
Interior photography.
General photography.
Lens hood is sold separately.
Compatible focusing screens: 1-1~1-6,1-10,1-13,1-14.

Specifications

Angle of view

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

47°

7-6

Auto

1.4-16

0.45m.

24x16cm.

  Straight helicoid

230g.

36mm.
[40mm.]

60mm.

51mm
Slide-on

49mm
Screw-in
