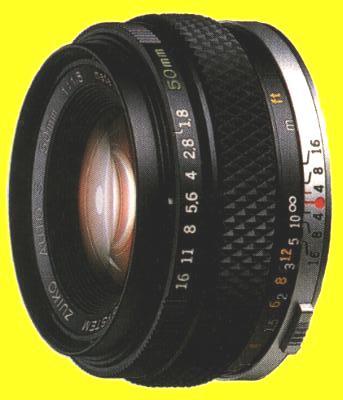

Lens Group       Zuiko 50mm/F1.8



Characteristics

Applications

Notes - Related Units

The most convenient to operate among the standard lenses.
Since various aberrations are compensated for almost completely, it provides high resolution over the entire picture area.
Tipping the scale at a mere 170g., it is one of the smallest and lightest lenses.
Close focusing up to 45cm. is possible.
Interior photography.
General photography.
Lens hood is sold separately.
Compatible focusing screens: 1-1~1-6,1-10,1-13,1-14.

Specifications

Angle of view

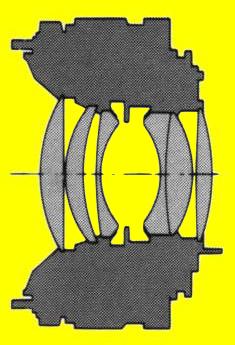

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

47°

6-5
[6-4]

Auto

1.8-16

0.45m.

24x16cm.

  Straight helicoid

170g.
[165g.]

31mm.
[32mm]

59mm.
[61mm]

51mm
Slide-on

49mm
Screw-in
