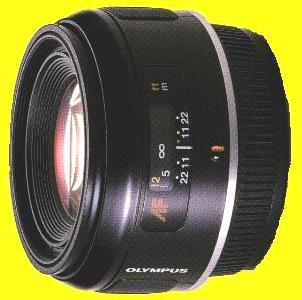

Lens Group       Olympus Lens AF 50mm/F1.8



Characteristics

Applications

Notes - Related Units

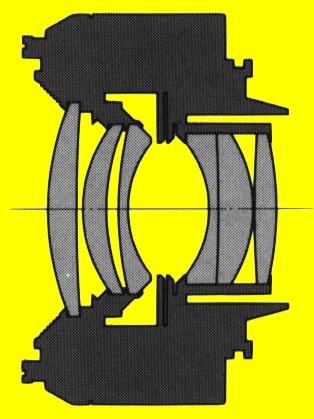

A compact, lightweight lens of 6 elements in 5 groups, this new autofocus standard lens produces high-contrast resolution right up to the edge of the film plane.
Corrected independently for all forms of aberration, especially coma aberrations. This results in sharp in-focus images that can contrast strongly with the soft tones of a blurred background.
Entirely controlled by the OM-707 AF or OM-101 PF body, for exceptional convenience in use as well as beautifully smooth appearance.
Interior photography.
General photography.
This lens cannot be used on cameras other than the OM-707 or OM-101.
When this lens is attached to the OM-707 or OM-101, the Auto Program Shift function automatically selects the standard lens program.
Programmed aperture selection can be overruled by the OM-101 in combination with Manual Adapter 2 and on the OM-707 by means of Program Shift.

Specifications

Angle of view

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

47°

6-5

Automatic control on camera body

1.8-22

0.45m.

24x16cm.

  Driven by AF/PF coupler on camera body

170g.

32mm.

62mm.

 Built-in

49mm
Screw-in
