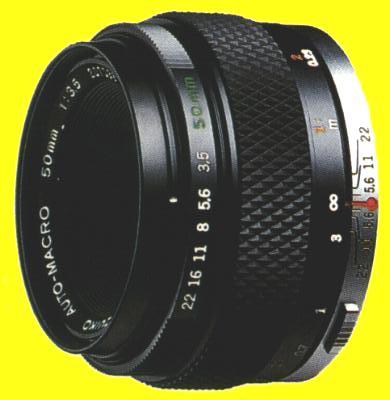

Lens Group       Zuiko Macro 50mm/F3.5



Characteristics

Applications

Notes - Related Units

Floating mechanism to compensate for close distance aberrations.
This lens affords superb resolution from infinity to 1/2 x life size at 0.24m.
It is unusually compact and light for a macro 50mm lens.
Close-up and copying work.
General photography.
Lens hood is not necessary.
Combined with Extension Tube 25, the reproduction ratio is extended from 1/2 to 1:1 life size.
However, to obtain best results in this range, the use of the 1:1 Macro 80mm/F4 (with Auto Bellows) is recommended.
Compatible focusing screens: 1-1~1-5,1-10,1-13,1-14.

Specifications

Angle of view

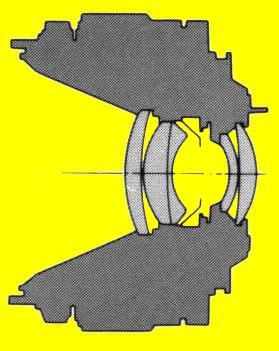

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

47°

5-4

Auto

3.5-22

0.23m.

72x48mm.

  Straight helicoid

200g.

40mm.

60mm.

Not
necessary

49mm
Screw-in
