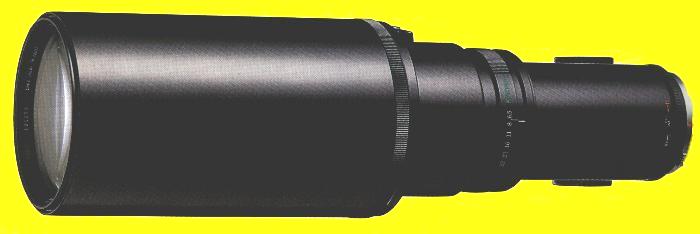

Lens Group       Zuiko 600mm/F6.5



Characteristics

Applications

Notes - Related Units

Unusually compact for a 600mm lens with a total length of 377mm.
The 4° angle of view gives striking telephoto effects.
The tripod ring is rotatable allowing easy operation for horizontal and vertical camera positioning.
Sports events.
Wild life.
Photojournalism, scenery.
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-2, 1-4, 1-7, 1-8 and 1-10.

Specifications

Angle of view

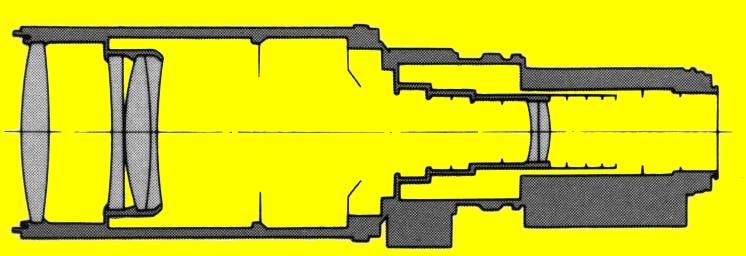

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

6-4

Auto

6.5-32

11m.

55x37cm.

Rack and pinion

2800g.

377mm.

110mm.

Built-in

100mm
Screw-in
