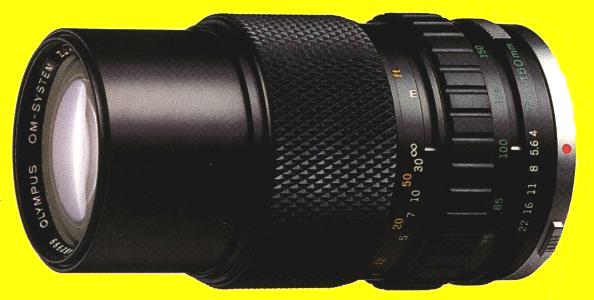

Lens Group       Zuiko Zoom 75-150mm/F4



Characteristics

Applications

Notes - Related Units

The 75-150mm zoom is a most versatile, popular lens. Designed for unusual compactness, its total length is a mere 115mm and with its weight of only 440g it is the lightest of the Zuiko tele zooms.
Despite its small size and weight it features a bright F4 aperture.
Once in focus, the zoom needs no refocusing when the focal length is changed.
It maintaines as high performances as those of fixed focus lenses.
Portraits.
Snapshots, scenery.
Mountains.
Sports events.
Vacations.
For hand-held photography, a shutter speed of 1/125 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1~1-4, 1-6, 1-10, 1-13, 1-14.

Specifications

Angle of view

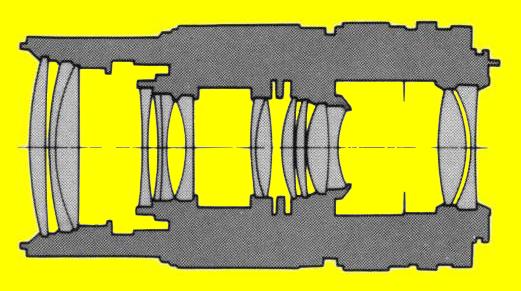

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

32°-16°

15-11

Auto

4-22

1.6m.

64x42cm(75mm)
32x21cm(150mm)

  Revolving helicoid

440g.

115mm

63mm

Built-in

49mm
Screw-in
