Lens Group       Zuiko 1:1 Auto Macro 80mm/F4 / Close-up Lens 80mm Macro f=170mm



Characteristics

Applications

Notes - Related Units

This is the world's first Auto macro lens for life-size reproduction for use with a 35mm SLR camera.
This epoch-making high-resolution macro lens is designed to perform from 0.5x~2x magnifications (object sizes 72x48mm~18x12mm).
Close-up and macrophotography around life-size reproduction ratios.
Slide copying.
This lens must be used in combination with the Auto Bellows or the Telescopic Auto Tube 65~116.
With the 65~116, automatic diaphragm and meter coupling is possible. With the Auto Bellows, automatic coupling is made using the Double Cable Release.
Close-up lens 80mm is available for up to 2x macrophotography to be used with this lens and the 65~116.
Compatible focusing screens: 1-4, 1-10 and 1-11.

Specifications

Angle of view

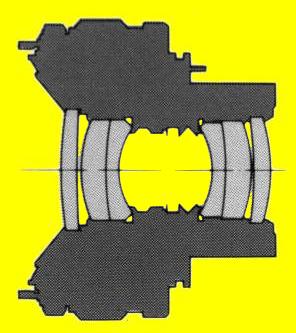

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

9° at highest magnification

6-4

Auto

4-32

0.23m.

max.72x48mm.
min.18x12mm.

with Auto Bellows, 65~116; fine focusing straight helicoid built-in.

170g.

33mm

60mm.

not necessary

49mm
Screw-in


Download instructions (0.23 Mb)
(Auto Macro 80mm/F4)
Download instructions (0.3Mb) (Close-up Lens 80mm Macro f=170mm)
