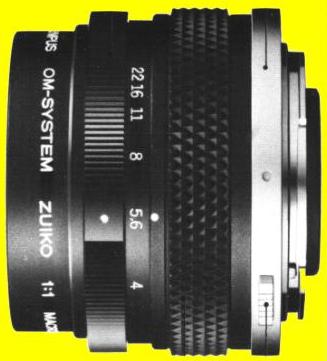

Lens Group       Zuiko 1:1 Macro 80mm/F4



Characteristics

Applications

Notes - Related Units
This is the world's first macro lens for life-size reproduction for use with a 35mm SLR camera.
This epoch-making high-resolution macro lens is designed to perform from 0.5x~2x magnifications (object sizes 72x48mm~18x12mm).		 Close-up and macrophotography around life-size reproduction ratios.
Slide copying.		 This lens must be used in conjunction with the Auto Bellows.
Because the aperture is manual, stopped down metering is required; focusing is easier with the aperture wide open.
An aperture preset ring facilitates manual aperture operation.
Compatible focusing screens: 1-4, 1-10 and 1-11.

Specifications

Angle of view

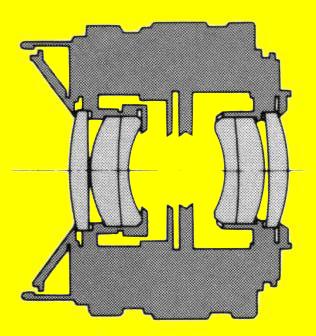

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

9° at highest magnification

6-4

Manual

4-22

-

max.72x48mm.
min.18x12mm.

with Auto Bellows

200g.

46mm.

59mm.

Not necessary

49mm
Screw-in
