Macrophoto Group       Macrophoto Stand VST-1 & B Adapter & Extension Bar VST-E


Summary Main Characteristics Notes - Related Units
A compact and sturdy multi-purpose stand for solid-camera support in close-up and macrophoto work. This stand consists of three seperate available units.

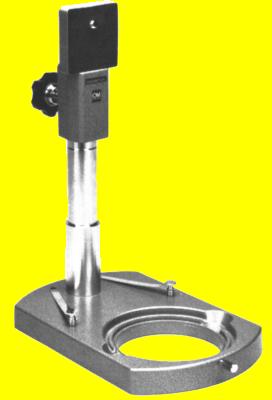

The base unit is the Macrophoto Stand VST-1, which comes with frosted stage glass for incident light and may be used in conjunction with the Trans-illuminator Base X-DE   for lighting of transparent subjects from beneath.
The Macro Photo Stand B Adapter is designed for mounting the camera, the Auto Bellows or the Focusing Rail to the Macrophoto Stand VST-1.
The Macrophoto Stand Extension Bar VST-E extends the height of the Macrophoto Stand VST-1 for longer subject distances, for instance when a standard lens or the 135mm Macro Lens is used.		 This unit fits seamless in the Trans-illuminator Base X-DE for transmitted lighting.
Five separate exchangeable Stage Plates and Stage Glasses are a available for various lighting techniques.
The Mechanical Stage FM enables pin pointing of the subject for high magnification work.
The Varimagnifinder is recommended for comfortable operation when the Macrophoto Stand is placed on a table.
A Motor Drive or Winder and M.Remote Cord are recommended to avoid camera position shift when winding the film.
