Body group OM-4Ti

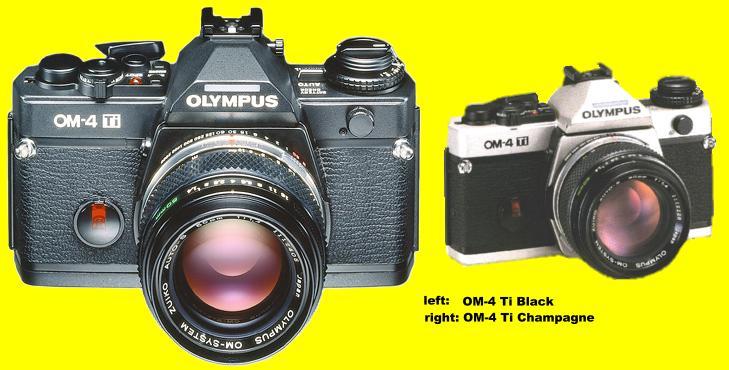

The OM-4Ti is an improved version of the original OM-4. The titanium top and bottom plate make the camera stronger and the electronics has been improved to reduce the battery drain that was clearly too high in the OM-4. Support for the F280 flash, that was introduded at the same time as the OM-707 adds flash synchronisation at all available shutter speeds for easier daylight fill-flash. Currently the OM-4Ti is only available in black. Originally it was made in 'champagne' (which was not a chrome finish or bare titanium, but painted titanium).
Main specifications
| Type: TTL auto-exposure 35 mm. Single Lens Reflex Camera. | Manual film advance: Film advance lever with 130° angle for one long or several short strokes and pre-advance angle 30°. |
| Film format: 24mm x 36mm. | Motor drive advance: With Motor Drive 1 or 2 unit attached, single frame and continuous advance at speed of 5 frames per second (at exposures of 1/500 sec. and above, with fresh batteries and at normal temperature and humidity). |
| Lens mount: Olympus OM Mount. | Film rewind: Rewind crank (motorized rewind with Motor Drive 2 possible). |
| Shutter: Electronically controlled focal plane shutter; 1/2000 sec. max. shutter speed; 1/60 sec. mechanical shutter speed. | Viewfinder: Viewfinder with dioptric correction; dioptric correction range from +1 to -3 diopters; finder viewfield: 97% of actual picture field; magnification: 0.84x at infinity with -0.5 diop. (50mm lens). |
| Synchronization: X contact (synchronization at speeds of 1/60 sec. or slower); Super FP Flash contact; Hot shoe with X contact, Super FP contacts and contacts for T series flash; 5-pin connector for T series flash; PC synchro socket. | Focusing screens: Wide selection of interchangeable screens (1- and 2-series). Supplied with Focusing Screen 1-13 (microprism/split image-matte type). |
| Light measuring method: Center-weighted, average light measurement, switchable to spot measurement; spot measurement selective in three modes: multispot, highlight and shadow-based methods. | Viewfinder information: LCD multi-mode display (2 min. limiter). Shutter speed, spot value(s), highlight mode, shadow mode, exposure compensation indicator, memory indicator. Markers for 3 stops under/over exposure in Manual Mode. LED indicator for flash ready / flash ok. Built-in illuminator (10 sec. limiter). |
| Automatic exposure control by average light measurement: TTL Direct "off-the-film" Light Measuring with aperture-preferred electronic shutter; exposure control range: about 1 min. ~ 1/2000 sec. (approx. -5EV~19EV at ISO/ASA 100, 50mm F1.4, normal temperature and humidity); ±2EV exposure compensation. | Self-timer: 12 sec. delay electronic self-timer. |
| Automatic exposure control by spot measurement: TTL spot metering memory system (with AE lock); exposure control range: about 4 min.~1/2000 sec. (approx. -7EV~19EV at ISO/ASA 100, 50mm F1.4, normal temperature and humidity); ±2EV exposure compensation. | Battery check: 3-level display with LED and auto tone; automatic lock when batteries exhausted. |
| Automatic exposure memory control: Exposure value memory system (60 min. limiter). | Power source: Two 1.5V silver-oxide batteries SR44 (Eveready EPX-76) or alkaline manganese batteries LR44. |
| Manual exposure control: B., 1 sec.~1/2000 sec. (synchronisation at speeds of 1/60 sec. or slower). | Camera back: Removable hinge type with memo holder; interchangeable with Recordata backs and 250 Film Back. |
| Flash exposure control: Super FP Flash mode (when using the Full
Synchro Flash F280) "OTF" AUTO: Synchronizes with shutter speeds from 1/60 sec.
to 1/2000 sec.; MANUAL: Synchronizes with all shutter speeds up to 1/2000 sec. Normal "OTF" or Manual Flash mode (when using a T-series Flash or Full Synchro Flash F280): Synchronizes with shutter speeds of 1/60 sec. and slower. |
Dimensions: 136x84x50mm (body alone). |
| Film speed: ISO/ASA 6-3200. | Weight: 510 gram (body alone). |
