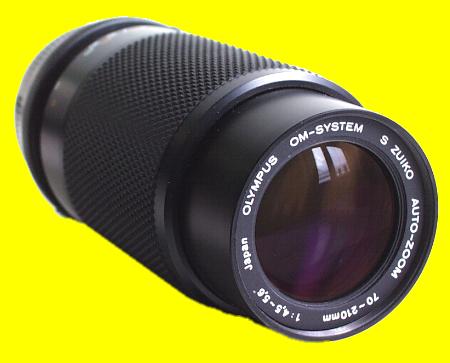

Lens Group       S Zuiko Zoom 70-210mm/F4.5-5.6





Characteristics

Applications

Notes - Related Units

This super light weight tele zoom is a very affordable option for starting photographers.
Combined with the S Zuiko Zoom 35-70mm/F3.5-4.8 the whole photographic range from 35mm wide angle to 210mm tele is covered with just two lenses that weigh together only 520g.
Portraits.
Snapshots, scenery.
Mountains.
Sport events.
Holidays.
For hand-held photography, a shutter speed of 1/250 sec. or faster is recommended.
Also, to prevent camera shake:
When using a tripod, hold the camera steady with both hands and press the shutter release with the ball of finger, not with the cable release.
Compatible focusing screens: 1-1, 1-6, 1-10, 1-13, 1-14.

Specifications

Angle of view

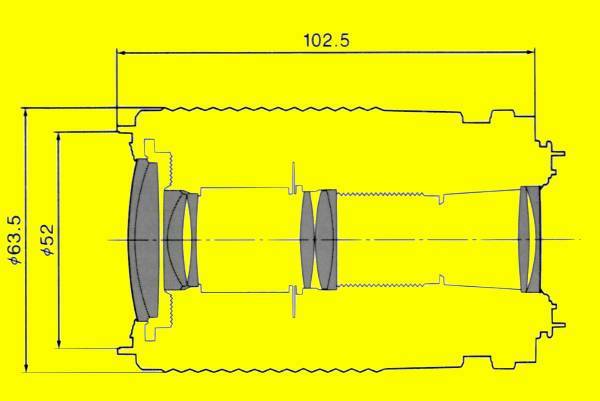

Optical construction
El.-Group

Diaphragm

F/stop
range

Min.
focus

Min.
photographic range

Focusing

Weight

Length

Max.
diameter

Hood

Filter

34°-11°

10-7

Auto

4.5-22(70mm)
5.6-28(210mm)

1.14m.

?

  Straight helicoid

335g.

102.5mm.

62.5mm.

52mm
Screw-in

52mm
Screw-in

Download instructions (0.17 Mb)
